Pool filtration pump overhaul and backing plate replacement

This pool filtration pump had a badly worn backing plate caused by cavitation. The pump is a close coupled motor so we replaced the motor bearings as well as the backing plate and mechanical seal.

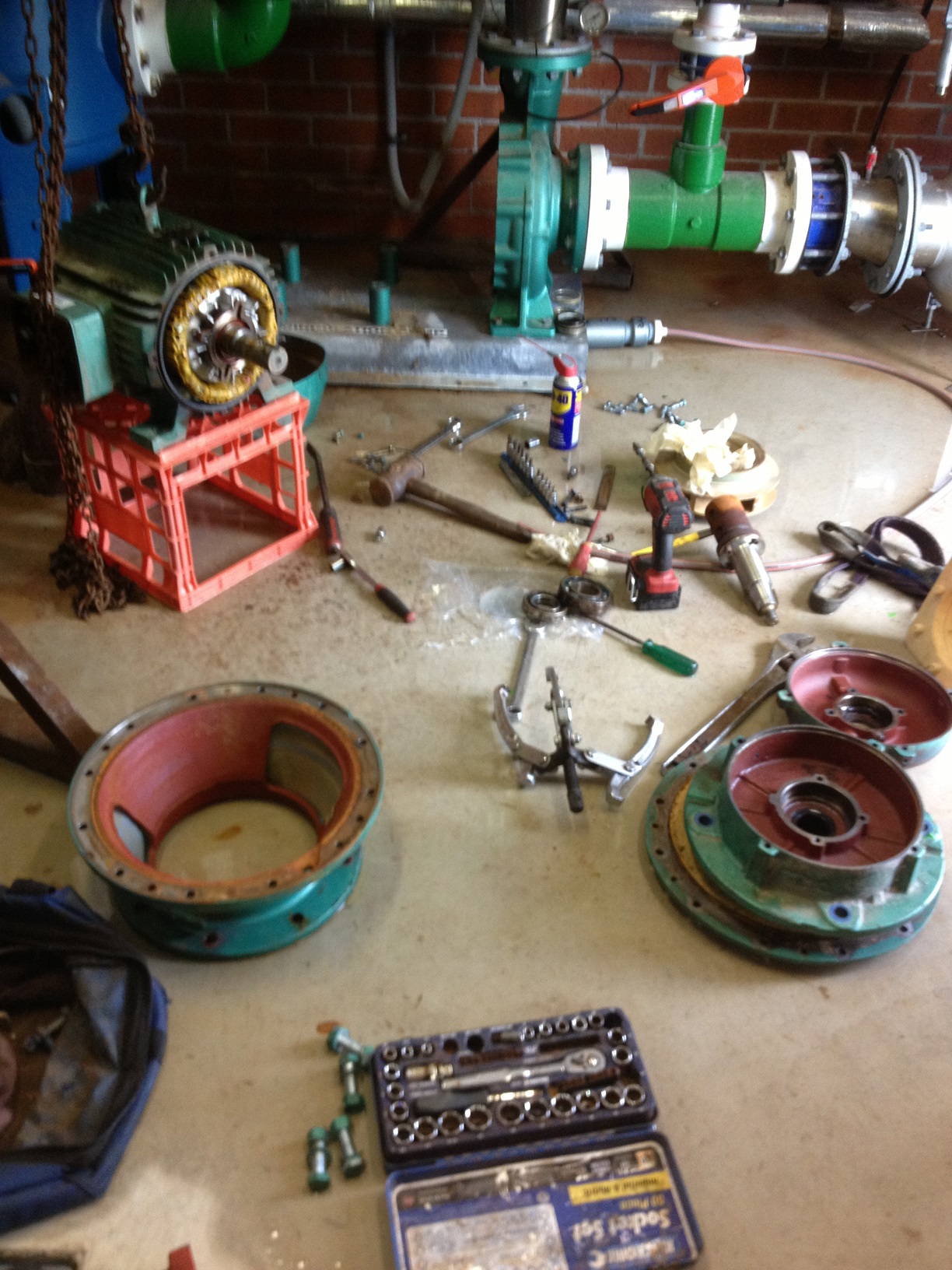

Pump fully stripped down and ready for new bearings

Pump fully stripped down and ready for new bearings

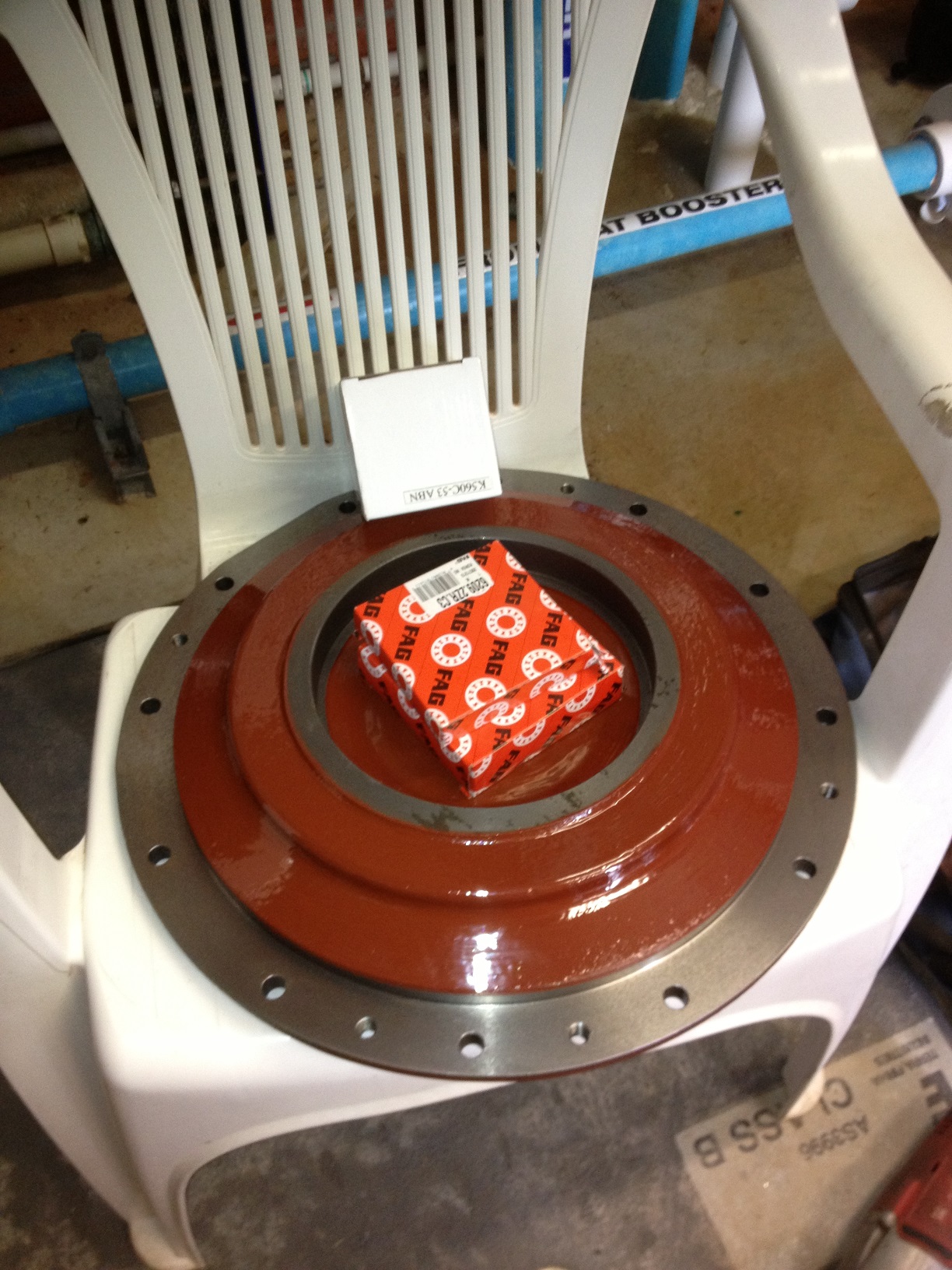

New bearings mechanical seal and epoxy coated backing plate.

New bearings mechanical seal and epoxy coated backing plate.

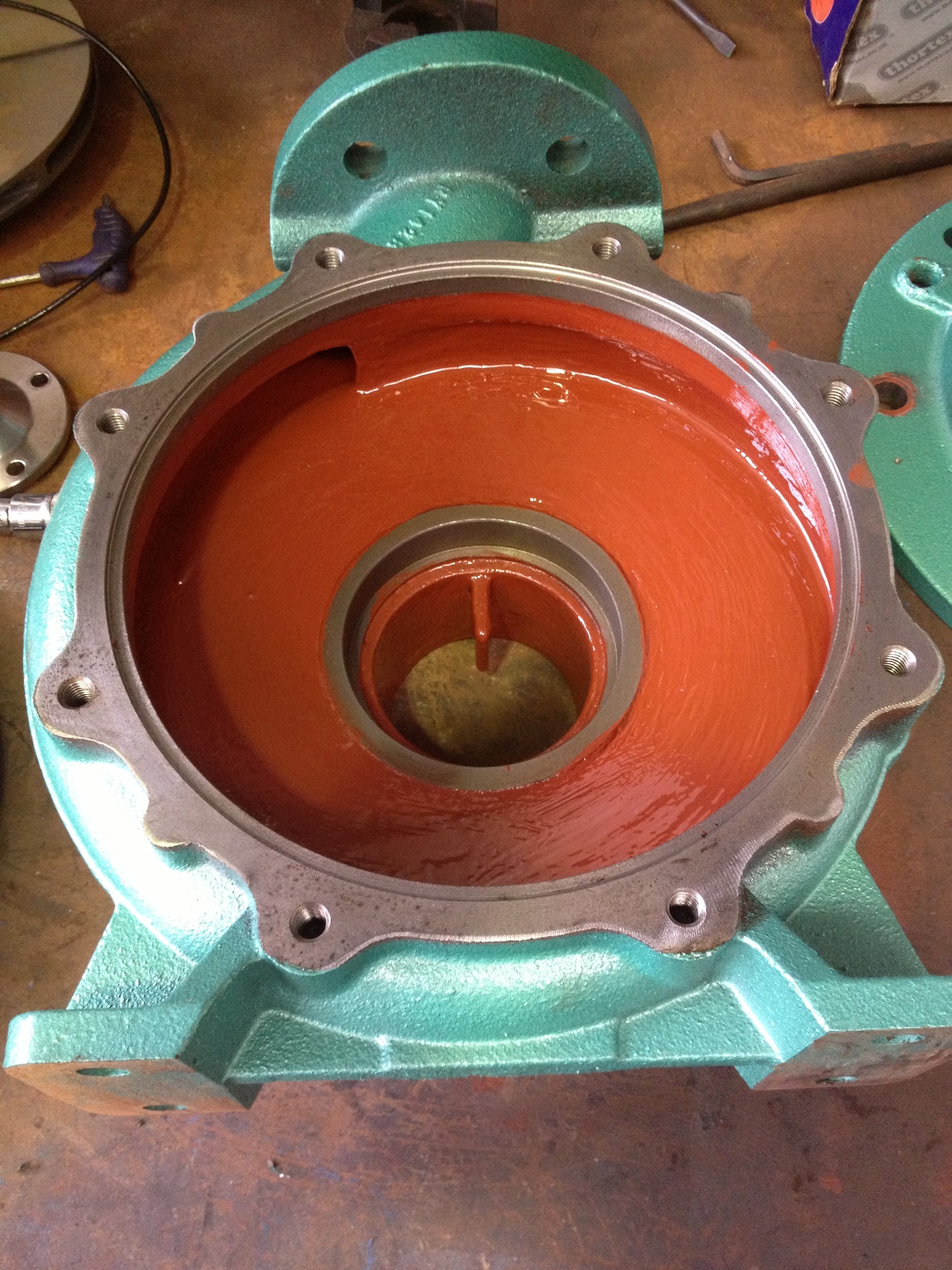

Epoxy coated valute

Epoxy coated valute

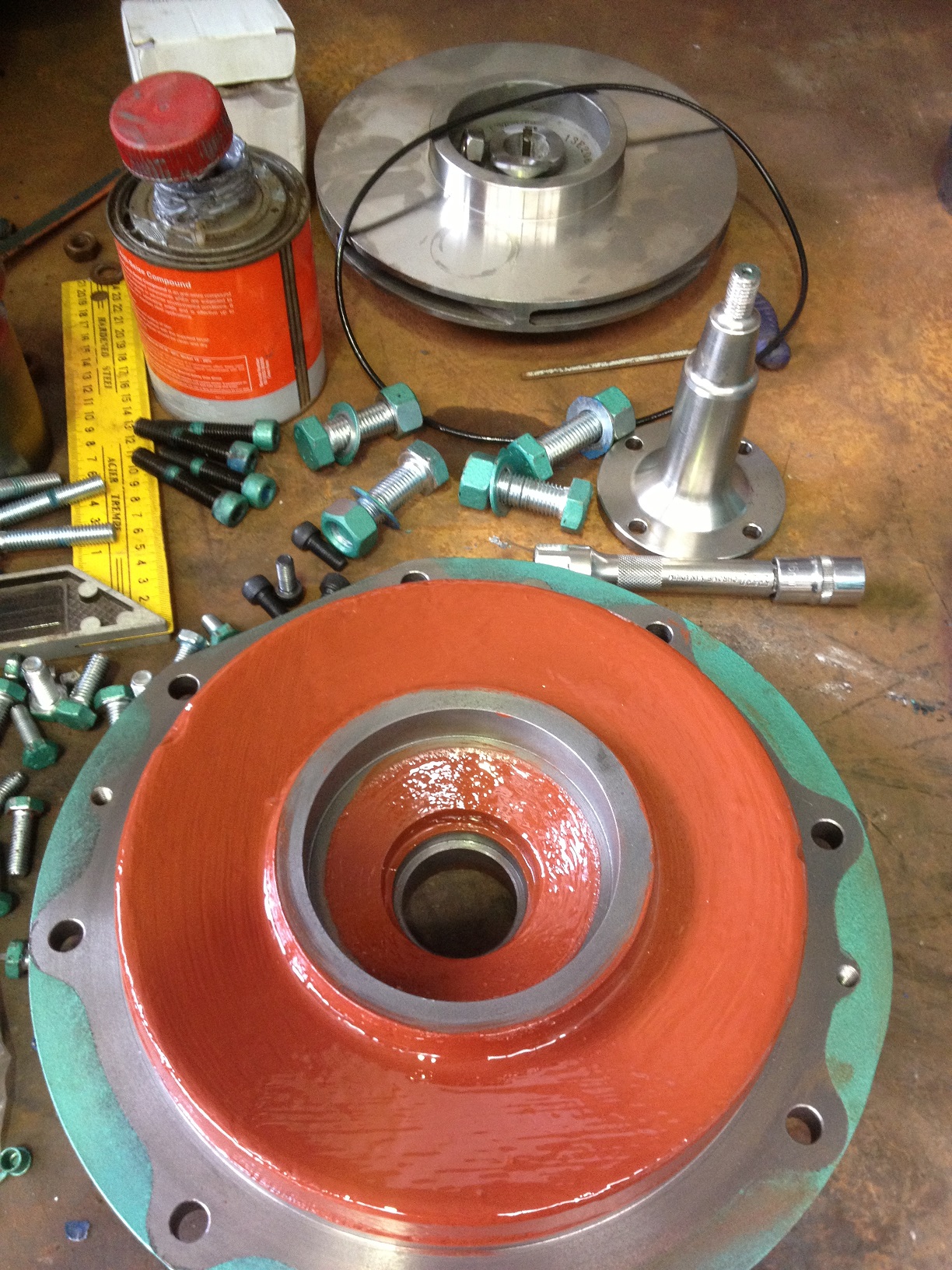

Parts ready to be put back together. Including stainless steel impeller.

Parts ready to be put back together. Including stainless steel impeller.

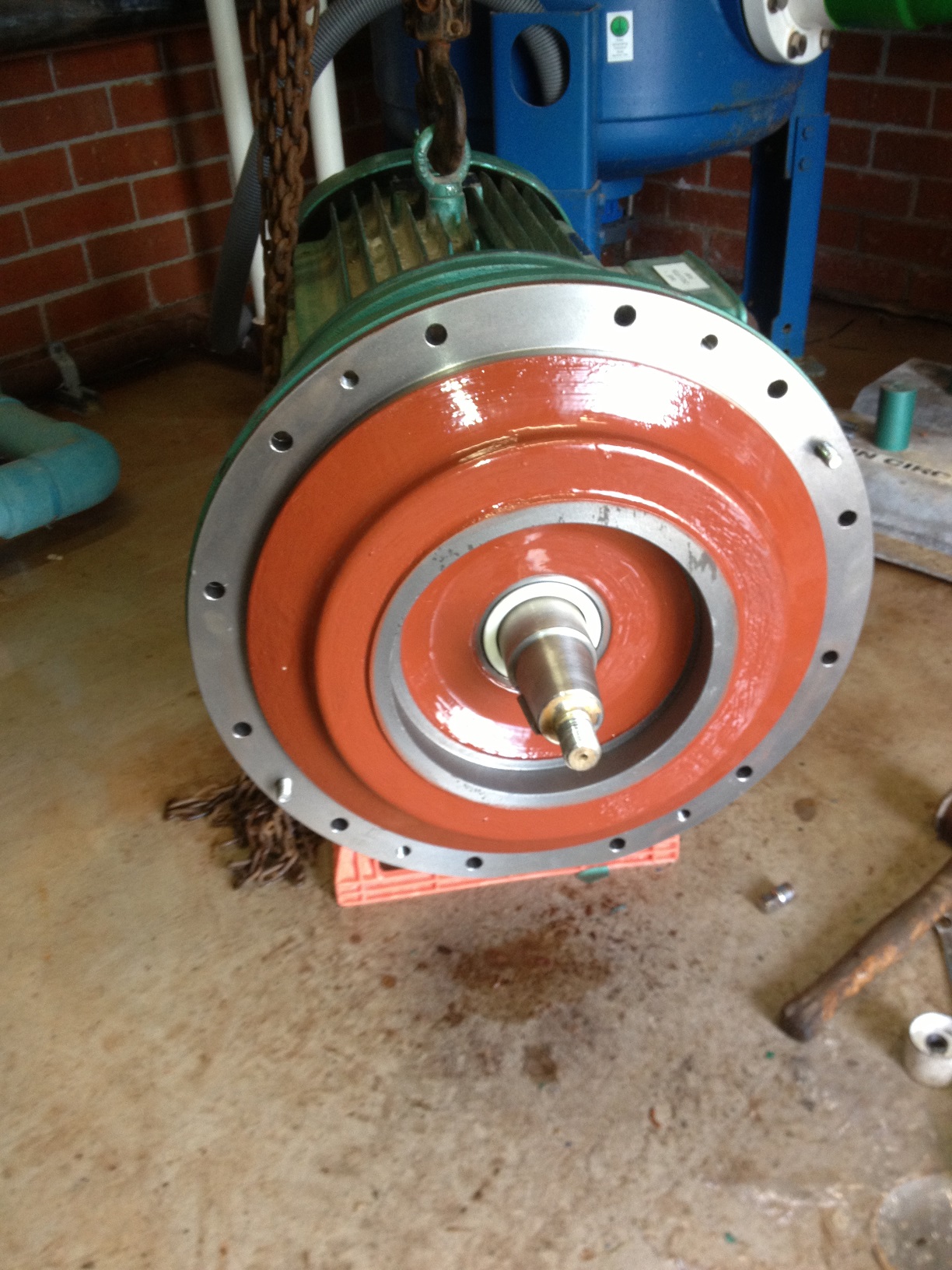

Pump reassembled minus the impeller

Pump reassembled minus the impeller
